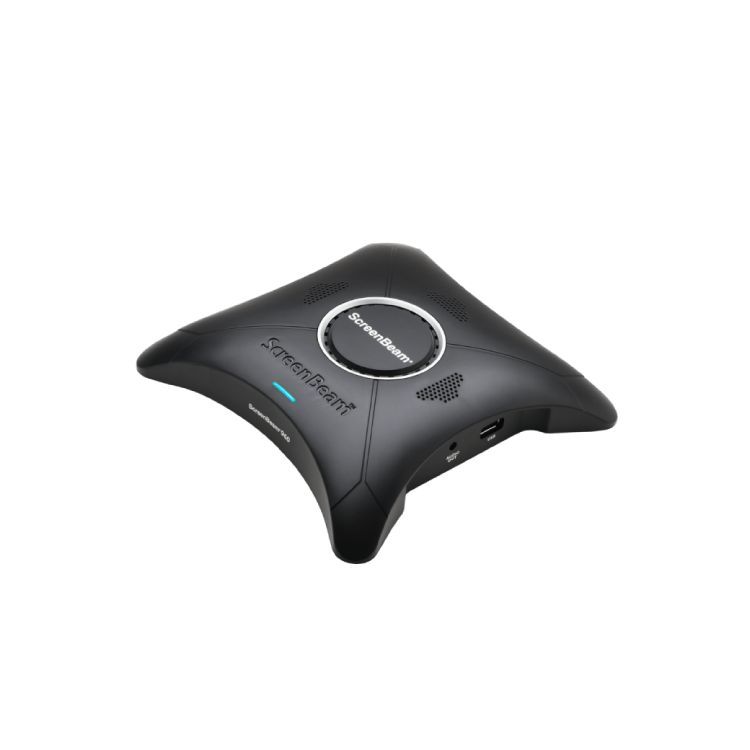

ScreenBeam 960A HD Wireless Display Receiver

Compatible OS/Device

Miracast: Windows 11/10 and Android
Airplay: MacOS 11+ and iOS 13+

Hardware

Video: H.264 compression
Audio: LCPM 2.0
Content Protection2: HDCP 2.x
Resolution1: Up to 1080p30
Ethernet: 10/100/1000 RJ-45 LAN

Wireless

Miracast P2P: 802.11ac dual band (non-DFS)
Infrastructure: 802.11a/b/g/n dual band (non-DFS)
Supported authentication:

• WPA-PSK (TKIP)
• WPA2-PSK (AES)
• PEAP-MSCHAP V2 (TLS 1.2)
• EAP-TLS (TLS 1.2)

Interface

• 1 x HDMI Output
• 1 x VGA Output
• 1 x VGA Input (Pass-through)
• 1 x Analog 3.5mm audio output
• 1 x USB 2.0 Host Type-A
• 1 x DC Power Jack

Power

Input: 5VDC, 2A
Consumption: <5W

Physical

Dimensions: 6.61 x 6.61 x 1.36 inch (168.0 x 168.0 x 34.5 mm)
Operating temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
Storage temperature: 0 ºC to 70 ºC (32 ºF to 158 ºF)
Operating humidity: 10 to 85%, non-condensing
Storage humidity: 5 to 90%, non-condensing

Regulatory and compliance

North America: FCC, IC and UL
European Nation: CE, RED and RoHS
Asia Pacific: NCC, WPC, MIC/TELEC, SRRC and RCM
Latin America: COC, NOM-NYCE, MTC, CRC and SUBTEL
