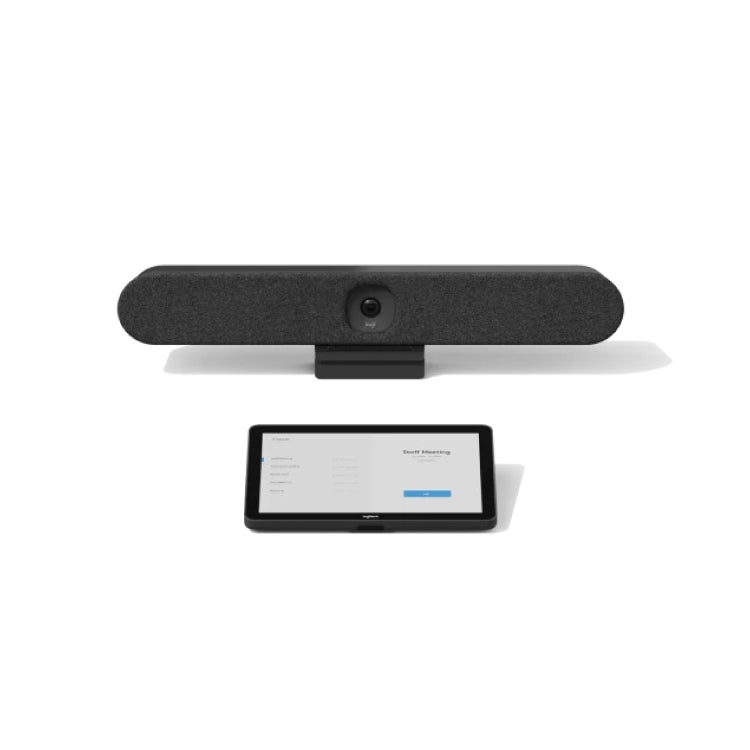

Part Number: 991-000481
Dimensions
Tap IP
Height: 56.1 mm
Width: 246.2 mm
Depth: 171.3 mm
Weight: 1.0 kg
Rally Bar Huddle
Height: 78.9 mm
Width: 549.6 mm
Depth: 76.0 mm
Weight: 1.8 kg
Technical Specifications
Certifications and Compatibility
For the latest information on certification and compatibility, see prosupport.logi.com/hc/articles/1500001344641.
General Specifications
Tap IP
Touch Screen: 257 mm diagonal screen with 14° display angle
Resolution: 1280 x 800
Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
Cable Management: Internal cable retention and strain relief system
Ethernet: 10/100 Mbps
WiFi: 802.11a/b/g/n/ac
Device Management: Logitech Sync
Colour: Graphite
Mounting: 100 mm x 100 mm VESA FDMI
Rally Bar Huddle
Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, multi functional mount, integrated motorized privacy shutter, Logitech CollabOS platform
Enclosure: All-in-one enclosure with field replaceable front cover
Device Management: Logitech Sync
Displays Supported: 1 (2nd display support is coming soon)
Display Resolution: 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
