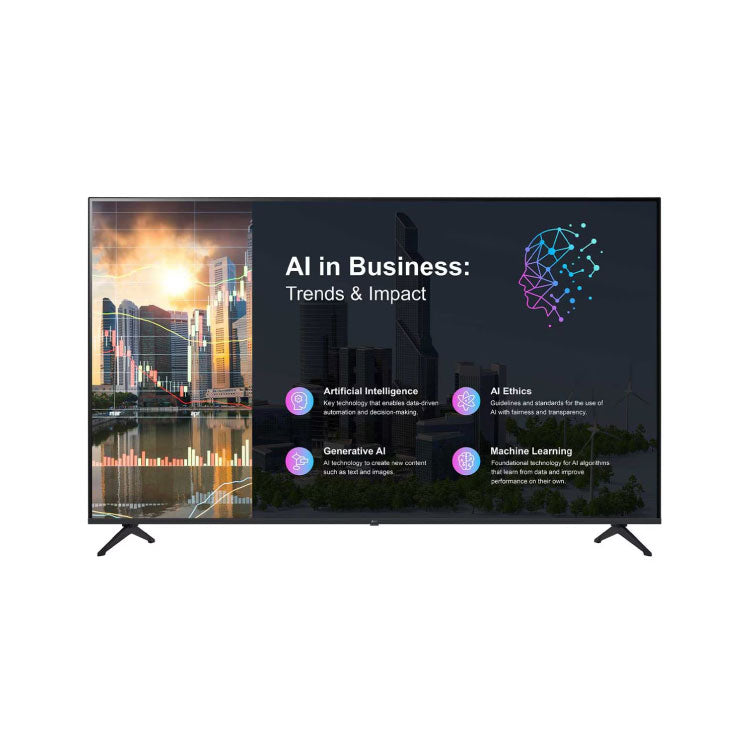

LG 75PK640S 75" 4K UHD Commercial Signage Display

LG 75PK640S 75" 4K UHD Commercial Signage Display

The LG 75PK640S is a 75-inch 4K UHD commercial display built for retail, hospitality, corporate and education settings. Featuring crystal-clear Ultra HD picture quality, commercial-grade reliability and LG's webOS signage operating system for easy content management and scheduling.

Screen Size:

75''

$1,299.00

Quantity:

Specifications

DESIGN

Tool Name: BOE UA75
Stand Type: 2Pole
front colour: Black

DISPLAY

Inch: 75”
Resolution: 3840 X 2160 (UHD)
Backlight Unit Type: Direct
Brightness: Typ. 300nit / Min. 260nit
Dynamic Contrast Ratio (Dynamic MCI (Hz)): 1,000,000:1
Static (Panel) Contrast RatioL: 1200:1(typ.)
Response Time(G to G, ms): 8ms (typ.)
Refresh Rate: 60Hz
Backlight Life: 30,000Hrs, 16Hrs/7Days

VIDEO

SoC: K25Lp
SoC (Marketing Name): Quad
HDR_HDR 10 Pro: Yes
HDR_HLG: Yes

AUDIO

Speaker (sound output): 10W + 10W
Speaker System: 2.0 ch

BROADCASTING SYSTEM

Analog (NTSC / SECAM / PAL): NTSC/PAL
Teletext (Auto Teletext): Yes
Global IPTV Support(IP Streaming): Yes

SMART FUNCTION

webOS version: Yes (webOS25)
Quick Access: Yes
Web Browser: Yes
Pre-loaded App: Yes (YouTube only)
SDP Server compatibility: Yes
SW Clock (World Clock / Alarm): Yes
Mood Display: Yes
HDMI-ARC: Yes (ARC, HDMI2)

OTHER FEATURE

USB Cloning: Yes
WOL / WOWL: Yes / No
SNMP: Yes
Diagnostics: Yes (Self Diagnostics (USB))
SI Compatible Protocol: Yes (TVLink Tuner)
HTNG-CEC: Yes
Simplink(HDMI-CEC): Yes(1.4)
IR Out: Yes (RS-232C Phone Jack type)
Multi IR Code: Yes
Hotel Mode / PDM / Installer Menu: Yes
Lock mode: Yes (Limited)
Port Block: Yes
Welcome Video: Yes
Welcome Screen (Splash Image): Yes
Insert Image: Yes
IP Channel Manager: Yes
External Speaker Out: Yes(Audio Out with 3.5mm Phone Jack)
Moving Picture Playback (SD/HD/Plus HD): Yes
Auto Off / Sleep Timer: Yes/Yes
Energy Saving mode: Yes
Motion Eye Care: Yes

VERTICAL FUNCTION

Vertical Setup: Yes
Fail Over: Yes
Play Via URL: Yes
Crestron Certi. Compatibility: Yes
DPM (Digital Power management): Yes
Time scheduler: Yes
BEACON: Yes
Embedded CM (contents manager): Yes
Embedded GM (Group manager): Yes
Control / Control Plus: Yes / Yes
CMS(Premium): Yes
Simple Editor: Yes
LG Connected Care: Yes
Set Side-HDMI In: 2 (2.0)
Set Side-USB: 1 (2.0)
Set Side-RF In: 1
Set Rear / Bottom-Digital Audio Out (Optical): 1
Set Rear / Bottom-RS-232C(D-Sub 9pin / Phone jack): 1 (Phone Jack, 4pin)
Set Rear / Bottom-External Speaker Out(3.5mm phone jack): 1 (Audio Out)
Set Rear / Bottom-RJ45 (Usage Purpose): 1 (LAN)

MECHANIC

Weight without Stand: 23.5kg
Weight with Stand: 24kg
Weight in Shipping: 33.6kg
Size without Stand: 1668mm*960mm*59.8mm
Size with Stand: 1668mm*1031mm*344mm
Bezel Width (L/R/U/B): On Bezel9.4mm/9.4mm/9.4mm/18mm
Bezel Width (L/R/U/B): Off Bezel7.3mm/7.3mm/7.3mm/2.5mm

POWER

Power Supply (Voltage, Hz): AC 100~240V, 50-60Hz
Power Consumption(Max): 201W
Power Consumption(Typ): 170W
Standby Power Consumption: Under 0.5W

REQUIRED LISTING(CERTIFICATION)

EMC: CE

ACCESSORY

Power Cable: Yes (Attached, 2M)
RS232C to phone jack cable: Yes

GENERAL

Region: SCA

Warranty Information

The LG 75PK640S Commercial TV Signage comes with a standard 3-year manufacturer's limited warranty covering parts and labor.

Brochure

View Brochure PDF

Upgrade your business with efficient digital displays

Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.

The LG UR640S: Performance Made Simple

Combine brilliant 4K clarity with an intuitive smart platform and built-in management tools. Designed for business and hospitality, this TV series delivers a premium viewing experience with effortless control.

Vivid Ultra HD Picture

See everything in incredible detail with 4x the resolution of Full HD. The IPS screen ensures the picture stays clear from any viewing angle.

WebOS 6.0 Smart Platform

Get started instantly with the user-friendly LG webOS 6.0, designed for smooth and intuitive operation.

All-in-One Content Management

Easily create schedules, edit playlists, and control your signage remotely without any extra software or hardware.

Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a same Wi-Fi network.
ailable on a same Wi-Fi network.
Column
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even

Versatile Content Management with LG SuperSign CMS

LG SuperSign CMS is an integrated management program supporting the creation and management of digital media and content deployment and optimized for LG signage.

With its simple and intuitive menus and layout options, it enhances efficiency for content creation, editing, scheduling and distribution to improve the user experience. It supports multiple displays and accounts, and is able to be linked to external databases.

Easy Menu Setup for Industries

UR640S series products increase user convenience by organising frequently used menus* into different industry types.

Real-Time LG ‘ConnectedCare’ Service

Maintenance is easy and fast with the optional LG ConnectedCare* service.

A cloud based service solution provided by LG. It remotely manages the status of displays in the client location for fault diagnosis and remote-control services, supporting the ongoing operation of appliances.
