Physical
Dimensions (W x H x D): 67 x 67 x 23.2 mm (26.4 × 26.4 × 9.1 inch)
Environment
Operating temperature: 0°C ~ 40°C
Storage temperature: -10°C ~ 60°C
Storage humidity: 10% ~ 80% RH Non-Condensing
Operating humidity: 5% ~ 90% RH Non-Condensing
Software
Wireless screen sharing: InstaShare 2

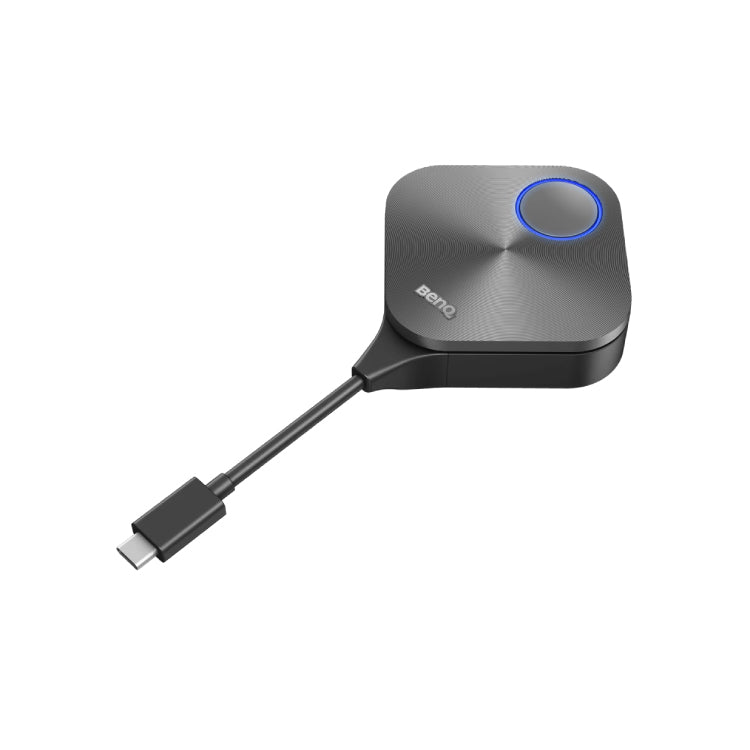

InstaShare Button
Colour: Silver
Wireless Transmission Frame Rate: Up to 60 fps depending on environment (1080P60/4K30P)
TX Button Input resolution: Up to 4K30P
Audio Rate: Stereo, Radio quality 16bits 48KHz
Wi-Fi Standard: IEEE 802.11ac 5GHz, 2T2R MIMO
Authentication protocol: Wi-Fi Standard
Wireless Security (Encryption): WPA2/3 Personal/WPA2 Enterprise Support AES-256
Wireless Coverage Reach: Max. 15 m (Between Button and IFP)
Cable: USB Type C
Power Supply: DC 5V±10%, Minimum 0.9A
Power Consumption: Max 4.5W Full Loading
Dimension (WxHxD): 67mm x 67mm x23.2mm
Temperature range: Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity range: Operating: 10% to 80% relative humidity
Storage: 5% to 90% relative humidity (non-condensing)
Casting: RP03 v1, RP03, RM03, RM03A-pair with TDY31 Wi-Fi dongle, RP04, RM04, RE03A, RE03N1, RE03N2-pair with WD02AT Wi-Fi dongle
Compatibility:
BYOM: RP03 v1, RP03, RM03, RM03A-pair with TDY31 Wi-Fi dongle, RP04, RM04-pair with WD02AT Wi-Fi dongle
