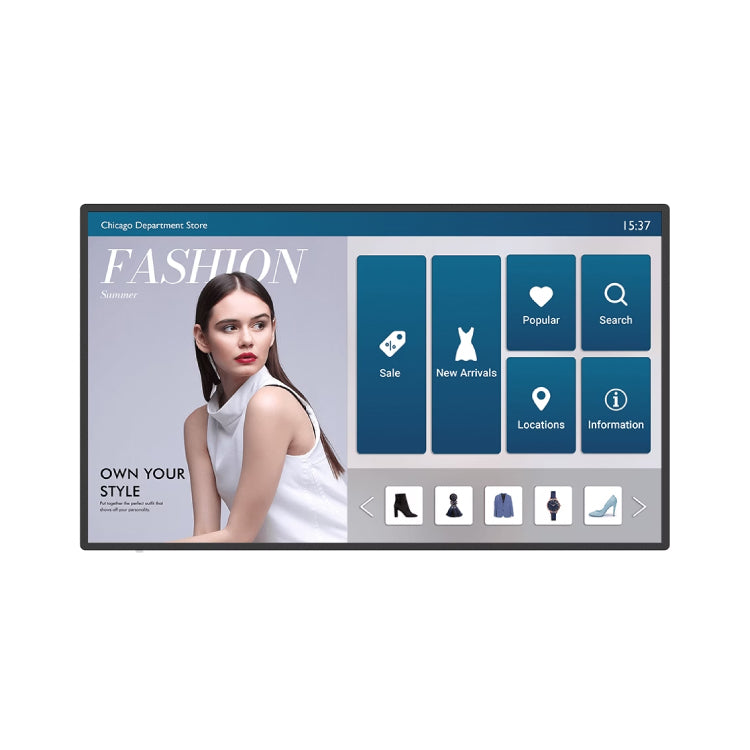

BenQ 55" Smart Interactive Display (IL5501)

BenQ 55" Smart Interactive Display (IL5501)

Interactive signage that makes a difference. A stunning digital display that is both interactive and captivating. While some displays look blurry from up close, the 4K UHD resolution of the IL01 Series will always show your content in fine detail.

$3,929.90

Quantity:

Specifications

Panel
Screen size: 55''
Panel type: IPS
Active area: 1209.6 × 680.4 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 9 ms
Colour depth: 10-bit
Orientation: Landscape and Portrait
Operation hours: 24 hours / 7 days
Panel brightness (typical): 400 nits
Contrast ratio (typical): 1300:1
Colour gamut: 68% NTSC
Backlight life (typical): 50,000 hrs

Glass
Germ-resistant technology: Nano-ionic silver
Anti-glare: Yes
Hardness: 9H tempered

Touch screen
Touch technology: Infrared touch
Touch points: up to 40
Touch response time: < 5 ms

System
GPU: Mali-G51MP2
CPU: A73 × 2 + A53 × 2
Memory | Storage: 3GB I 32GB
OS: Android 8.0

Connectivity
HDMI (in | out): 2 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort: 1 × 1.2 | No
USB-A: 2 × 2.0
USB-B (for touch): 1 × 2.0
3.5 mm Line in (1): PC Audio × 1
VGA: 1 | 0
3.5 mm Line out: Earphone × 1
OPS slot (for slot-in PC): 1
S/PDIF out: 0 | 1 (optical)
Ethernet: 10 / 100 Mbps (Android) × 2
RS-232: 1 | 0

Built-in peripherals
Speaker: 2 × 10 W

Power
Power: AC 100-240V 50/60Hz
Standby power consumption: <0.5 W
Typical power consumption: 111W

Physical
Dimensions (W x H x D): 1284.1 × 754.9 × 92.6 mm (50.6 × 29.7 × 3.6 inch)
Shipping dimensions (W x H x D): 1400 × 845 × 175 mm (55.1 × 33.3 × 6.9 inch)
Weight (product I shipping): 29.1kg | 35.2kg (64.2 lbs | 77.6lbs)
Mount (screws): VESA 400 × 400 mm (4 × M6 × 15L)

Environment
Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
Storage temperature: -10°C ~ 60°C | 14°F ~ 140°F
Storage humidity: 10% ~ 90% RH non-condensing
Operating humidity: 20% ~ 85% RH non-condensing

Software
Wireless screen sharing: InstaShare 1 (BenQ App Store)
Device management: DMS
Broadcast system: X-Sign Broadcast

Accessories
Cables: 1 × VGA (1.5 m | 4.9 ft), 1 × HDMI (1.5 m | 4.9 ft), 1 × DP (1.5 m | 4.9 ft), 1 × USB-B for touch (1.5 m | 4.9 ft)
Wall mount: Optional (by PN)
Pen: Optional (by PN)
Remote control: 1

Warranty Information

Add your warranty information here. Include warranty period, coverage details, and claim procedures.

Brochure

View Brochure PDF

See the difference

Compared to traditional touchscreens for classrooms, BenQ Boards for education have multiple layers of hardware and software features designed to safeguard the vision of teachers and students as they use our displays during classes.

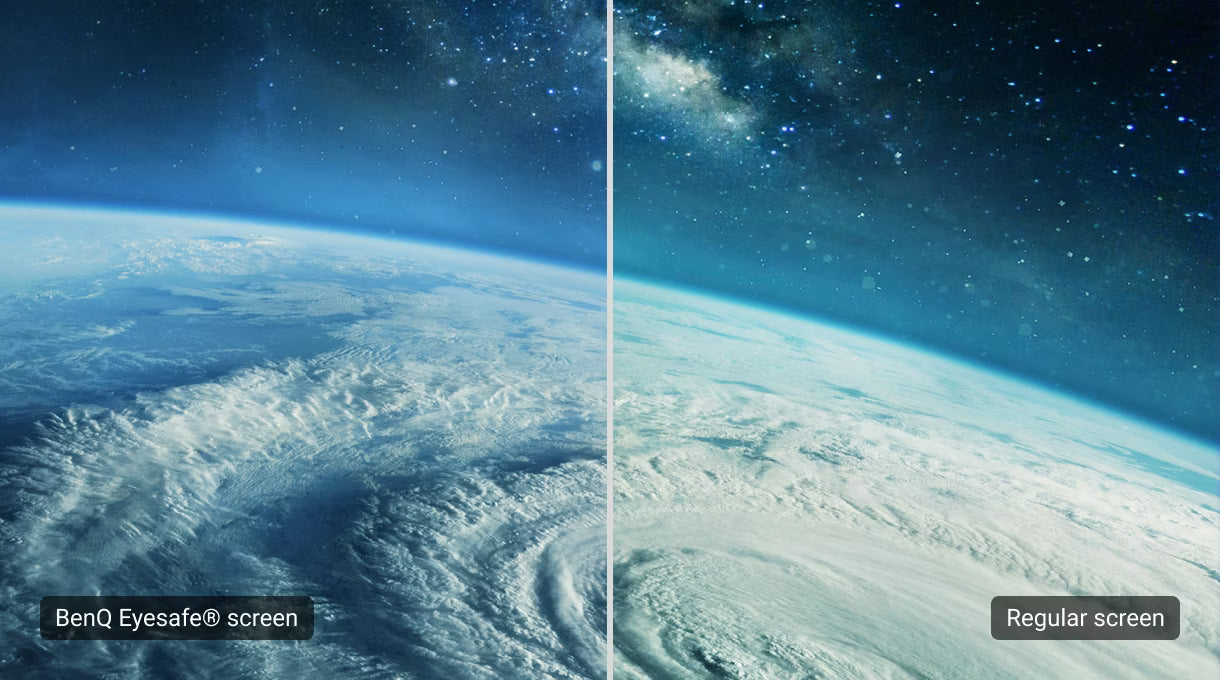

Low blue light

Blue light is known to cause eye strain and other long-term eye conditions. Our filter and Eyesafe Certified 2.0 screen effectively reduce blue light’s harmful effects.

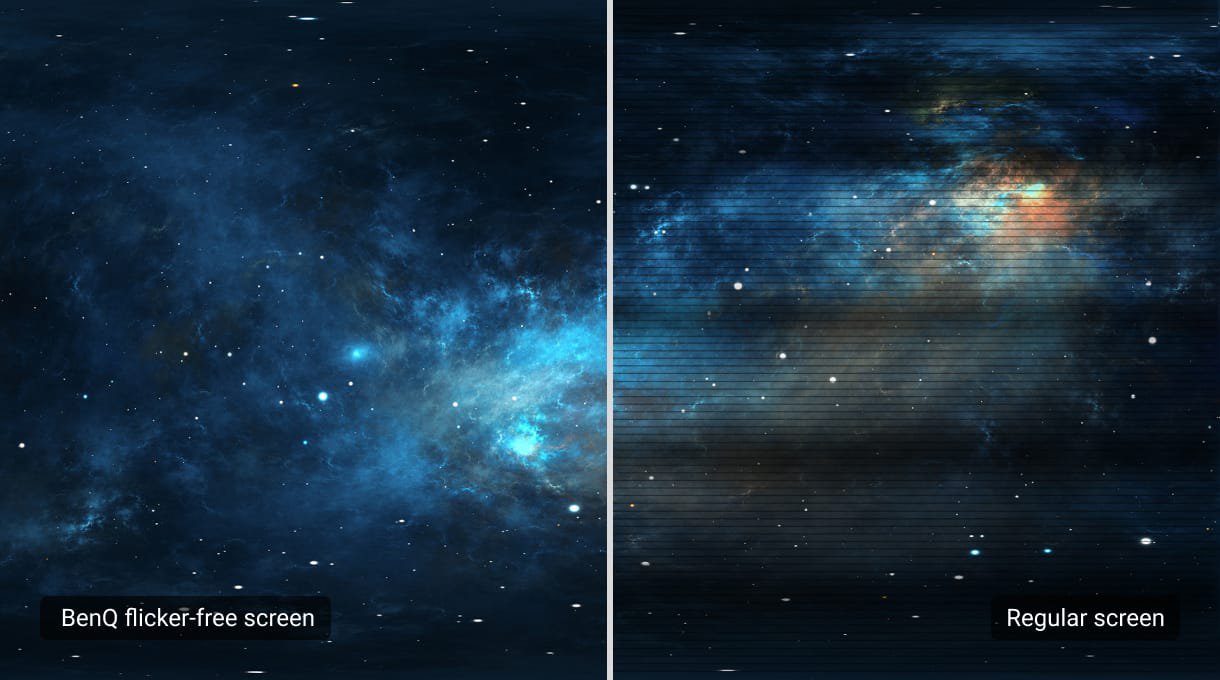

Flicker-free

Displays with low refresh rates often flicker, causing dizziness and eye strain during class. BenQ’s flicker-free displays eliminates this issue, guaranteeing smooth visuals every time.

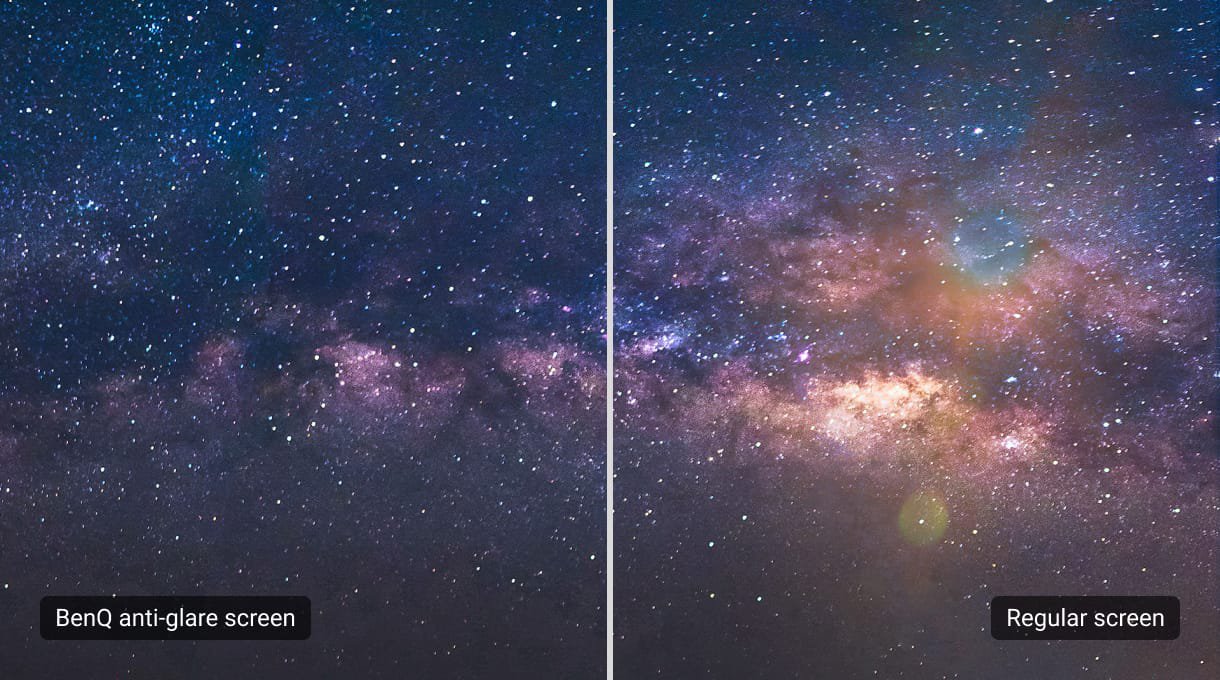

Anti-glare

When using displays for teaching, it’s important for on-screen details to be visible. BenQ’s anti-glare screens significantly reduces glare even under bright lighting conditions.

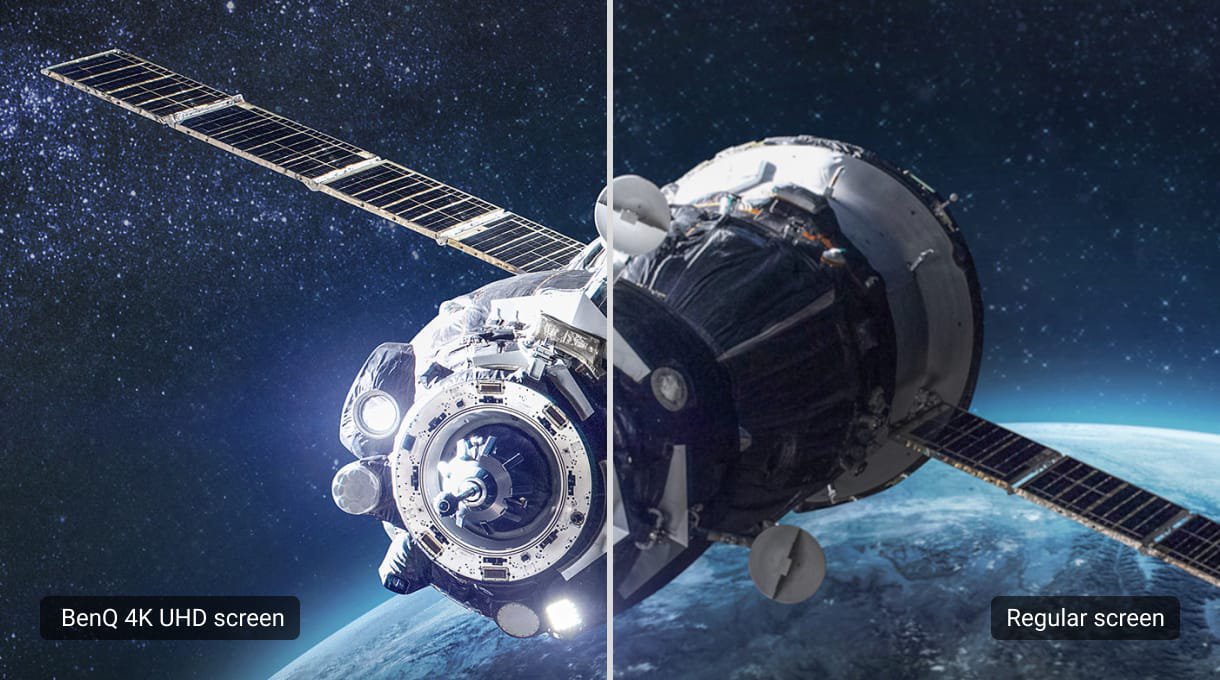

4K UHD clarity

Low resolution screens affect the quality of images, videos, and presentations for class. BenQ’s 4K displays ensure that teaching materials are always shown in vivid detail.
